Standard Internal-Mount End Blocks

Sputtering Components has a complete line of internal-mount end blocks (rotary sputtering cathodes). With few parts, they are designed to be extremely reliable and for do-it-yourself maintenance for the lowest cost of ownership.

	Series	Electrical rating	Target inside diameter	Target maximum length	Maximum load	Single-ended design	Thickness

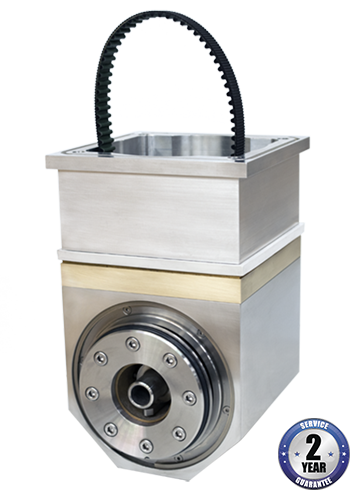

	Series SC	Electrical rating 200 kW; 1500 V / 450 A (DC or 80 kHz AC)	Target inside diameter 125 mm	Target maximum length 4000 mm	Maximum load 2000 kg horizontal 400 kg vertical	Single-ended design Yes	Thickness 204 mm
	Series MC	Electrical rating 100 kW; 1500 / 225 A (DC or 80 kHz AC)	Target inside diameter 125 mm	Target maximum length 2500 mm	Maximum load 1000 kg horizontal 200 kg vertical	Single-ended design Yes	Thickness 154 mm

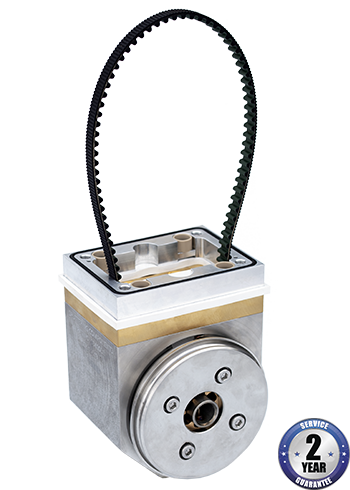

	Series cMC	Electrical ratingn 80 kW; 1500 V /180 A (DC or 80 kHz AC)	Target inside diameter 125 mm	Target maximum length 2000 mm	Maximum load 1000 kg horizontal 200 kg vertical	Single-ended design Yes	Thickness 125 mm

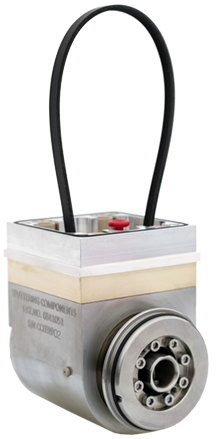

	Series CC	Electrical rating 20 kW; 1500 V / 50 A (DC or 80 kHz AC)	Target Diameter 80 mm	Target maximum length 1000 mm	Maximum load 250 kg horizontal 100 kg vertical	Single-ended Design Yes	Thickness 122 mm

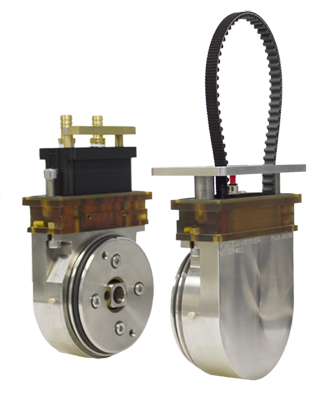

	Series TC	Electrical rating 40 kW; 1500 V / 100 A (DC or 80 kHz AC)	Target inside diameter 125 mm	Target maximum length 1500 mm	Maximum load 250 kg horizontal 100 kg vertical	Single-ended design No	Thickness 58 mm on each side
