Swing Cathodes™

With the Swing Cathodes™, the magnet pack swings in a programmable rotary axis that is independent of the rotating target tube, making it an ideal system for display or 3D part coating.

Uniformity of < ±1% can be achieved on a static substrate (compared to > ± 15% on static substrates when not using swing).

Series	Mounting location	Electrical rating	Target inside diameter	Target maximum length	Maximum load
Series SMS	Mounting location External	Electrical rating 200 kW; 1500 V / 450 A (DC or 80 kHz AC)	Target inside diameter 125 mm	Target maximum length 4000 mm	Maximum load 2000 kg horizontal 400 kg vertical
Series MMS	Mounting location External	Electrical rating 100 kW; 1500 V / 225 A (DC or 80 kHz AC)	Target inside diameter 125 mm	Target maximum length 2500 mm	80-mm ID target: 1000 mm 125-mm ID target: 650 mm 1000 kg horizontal 200 kg vertical
Series CMS	Mounting location External	Electrical rating 20 kW; 1500 V / 50 A (DC or 80 kHz AC)	Target inside diameter 80 mm or 125-mm	Target maximum length 1000 mm	Maximum load 250 kg horizontal 100 kg vertical

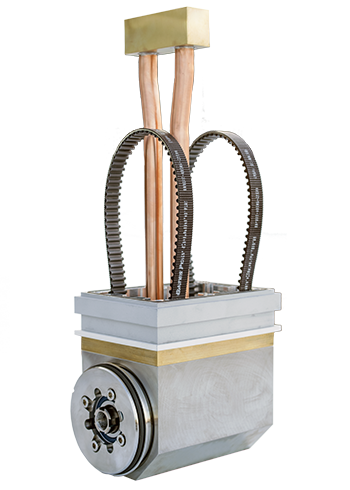

Series MCS	Mounting location Internal	Electrical rating 100 kW; 1500 / 225 A (DC or 80 kHz AC)	Target inside diameter 125 mm	Target maximum length 2500 mm	Maximum load 1000 kg horizontal 200 kg vertical
